disc harrow heavy duty from China manufacturer - Shandong Yucheng Ali Disc Harrow Co. Ltd

Price:	999.0~1111.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 1BZ-2.5

Production Capacity: 500

Delivery Date: 10-20days

2.5: 2.5

Means of Transport: Ocean

Packing: Iron net box

Brand Name: ali

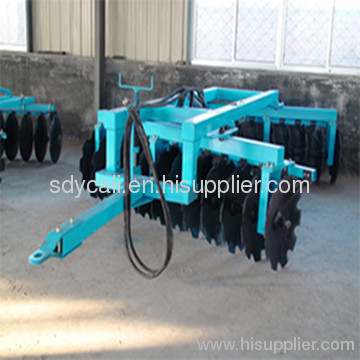

2012 HOT SALE trailed offset disk harrow heavy duty
1.Working width:3000mm
2. Working depth:180~200mm
3. Q'ty of disc :28

This series of 1BZ hydraulic trailed offset heavy-duty disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened and impervious soil surface, crush and spread straw into the field, shatter soil after tillage, and level the land and preserve soil moisture. It can be used as tillage machine instead of plough on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.

Having absorbed all advantages from such machines of foreigners and Chinese, it is designed according to the standarded assembled structure, the main frame is welded with rectangular tubes, on which assembled with hydraulic lifting transportation wheels, adjustable spring device and special used bearing assemblies.

Therefore this machine is strong and durable for operation and easy to be adjusted and maintained with the reasonable structure, small turning radius ,and is convenient for transportation , etc. 1BZ disc harrow heavy duty, disc harrow light duty HOT SALE

1BZ disc harrow heavy duty, disc harrow light duty HOT SALE

Model	unit	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0
Working width	m	1.8	2.2	2.5	3.0	3.4	4.0
Working depth	mm	180~200	180~200	180~200	180~200	180~200	180~200
Q'ty of disc	16	20	24	28	32	36
Disc diameter	mm	660(650) 600(610)	660(650) 600(610)	660(650) 600(610)	660(650) 600(610)	660(650) 600(610)	660(650) 600(610)
Overall weight	kg	1100	1250	1350	1450	1550	1700
Matched power	hp	≥70	≥80	80~100	100~120	120~150	140~160
Linkage	(Trailed )
